LM-TV04 |
|

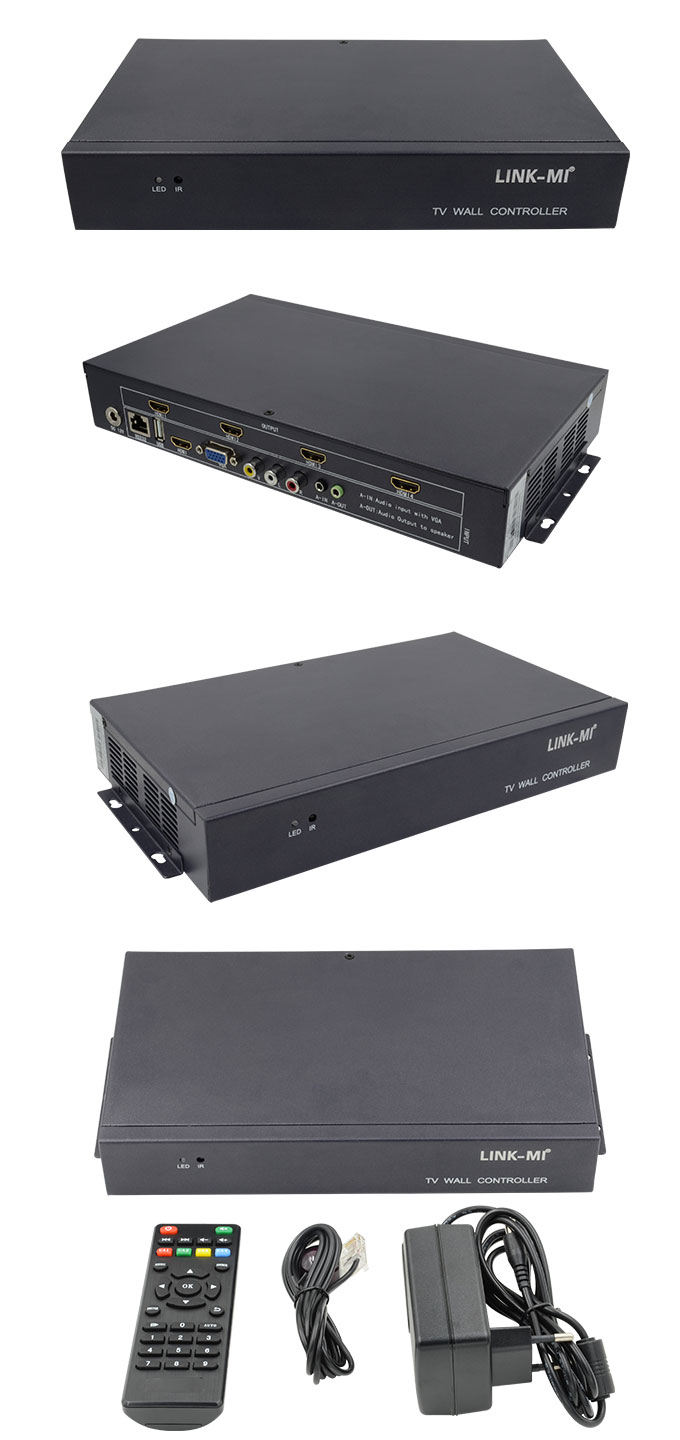

| LINK-MI TV04 2x2 Video Wall Controller USB+HDMI+VGA+AV TV HDMI With Fully-digital Processing Channel |
| |
Introduction:
1.Truly in/out modular design--- truly concept modular, in/out boards 2.All-format signal capture--- including composite video, VGA, DVI, HDMI etc3.Fully-digital processing channel inside --- Built-in conversion for analog/digital, interlaced/progressive, resolution, aspect ratio and refresh rate. 4.individually supports 180° rotation 5.Easy maintenance--- suitable for all environment6.Various control port---RS232, remote controller7.HDCP compliant---HDMI 1.3, HDCP protection |
|
|
| |
|
|
|
|

Specification
|
Name |
Spec |
|

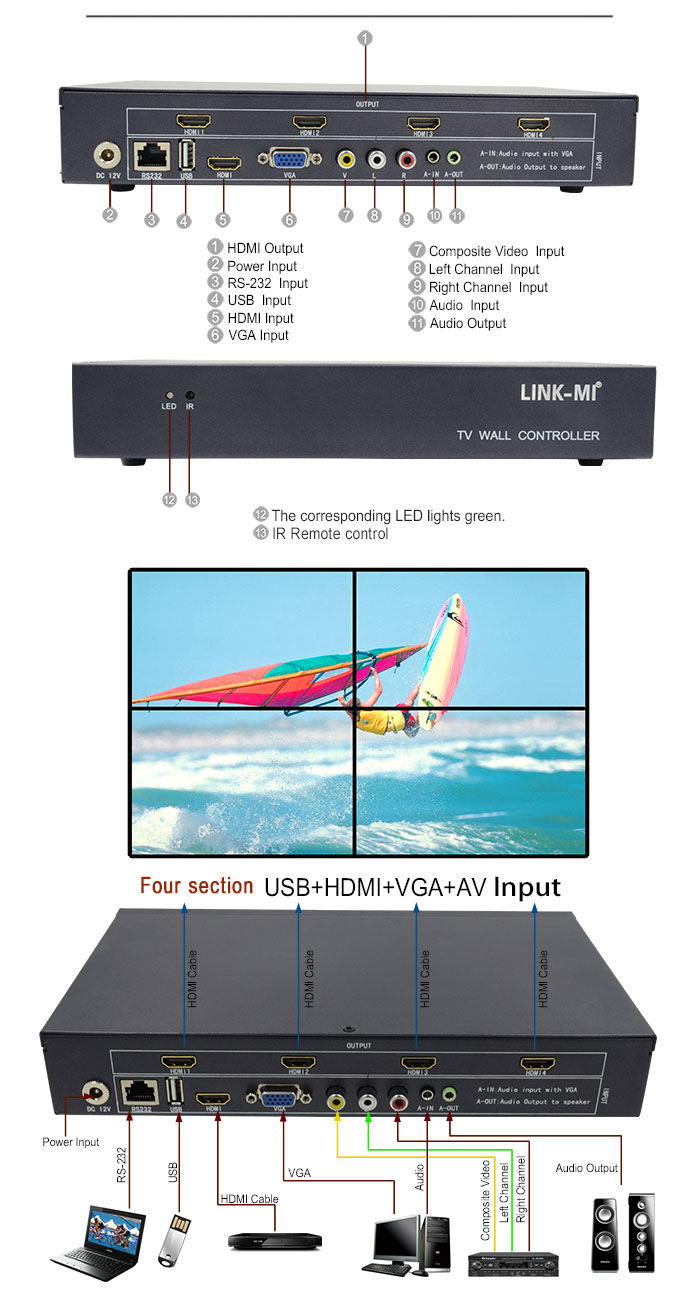

HDMI input |
|
|
Interface |
HDMI (support HDCP1.3 and DVI1.0) |
|
Resolution |
Up to 1920*1080@60Hz |
|
Color |
24bit,16.77M |
|
VGA input |
|
|
Interface |
DB15 |
|
Resolution |
800*600 to 1920*1080@60Hz |
|
AV input |
|
|
Interface |
RCA |
|
Identification |
Auto |
|
Standard |
PAL,NTSC |
|
USB |
|
|
Video |
RM, RMVB, AVI, WMV, MOV, MP4, FLV, MPG, DAT, MPEG and so on, resolution up to 1080P |
|
Audio |
MP3, WMA, FLAC and so on |
|
Picture |
JPG, BMP, PNG |
|
Text |
TXT |
|
Audio in |
Fit for VGA video |
|
Audio output |
Fit for output video |
|
HDMI output |
1024*768@60hz,720P@60Hz,1080P@60Hz |
|
Controller |
Remote,button,RS232 |
|
Power |
Input: AC 100-240V |
|
Dimension |
260mm(L)x150mm(W)x44mm(H) |
 |
 |
|
|
|
